5A 200V Through Hole Schottky diodes SR5200

FOB Reference Price:Get Latest Price
US $0.02-0.1 / Piece | 1000 Piece/Pieces 5A 200V Through Hole Schottky diodes SR5200 (Min. Order)
Supply Ability:
20000000 Unit/Units per Month 5A 200V Through Hole Schottky diodes SR5200
Port:
FOB Qingdao or Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
JF
Model Number:
SR5200
Type:
Schottky Diode
Package Type:
Through Hole
Max. Forward Voltage:
0.95V
Max. Reverse Voltage:
200V
Max. Forward Current:
5A
Max. Reverse Current:
20uA
Key word:
SR5200
VRRM:
200V
VRMS:
140V
VDC:
200V
I(AV):
5A
I FSM:
150A
CJ:
400PF
TJ/TSTG:
-65 to+150℃
Weight:
0.041ounce, 1.15 grams
Case:
JEDEC DO-201AD molded plastic body
Packaging & Delivery
Packaging Details
AMMO BOX, TAPE REEL for 5A 200V Through Hole Schottky diodes SR5200
Delivery Time
Shipped in 7 days after payment

5A 200V Through Hole Schottky diodes SR5200

Product Details

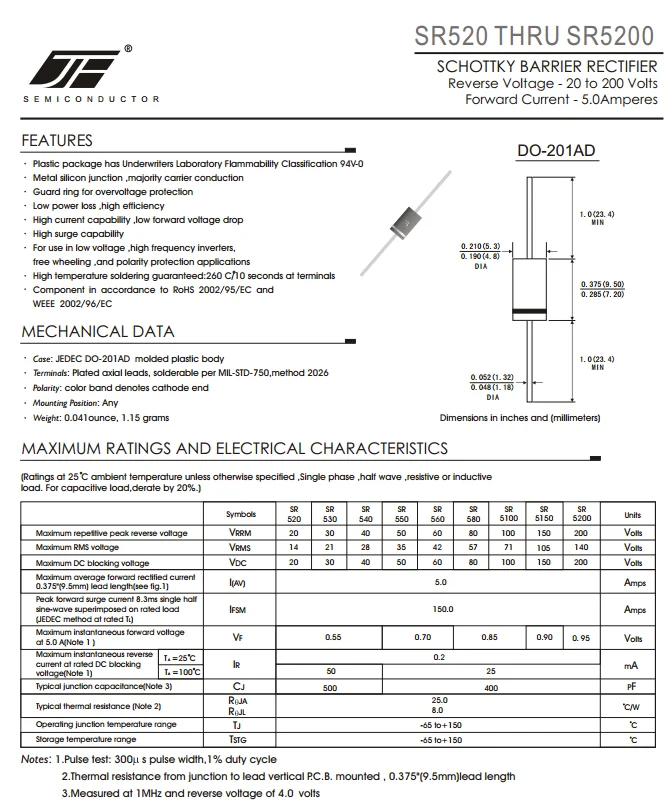

SR520 THRU SR5200 SCHOTTKY BARRIER RECTIFIER
Reverse Voltage - 20 to 200 Volts
Forward Current - 5.0Amperes

FEATURES

· Plastic package has Underwriters Laboratory Flammability Classification 94V-0

· Metal silicon junction ,majority carrier conduction

· Guard ring for overvoltage protection

· Low power loss ,high efficiency

· High current capability ,low forward voltage drop

· High surge capability

· For use in low voltage ,high frequency inverters,free wheeling ,and polarity protection applications

· High temperature soldering guaranteed:260℃/10 seconds at terminals

· Component in accordance to RoHS 2011/65/EU

RATINGSAND CHARACTERISTIC CURVES SR520 THRU SR5200

MECHANICAL DATA

· Case: JEDEC DO-201AD molded plastic body

· Terminals: Plated axial leads, solderable per MIL-STD-750,method 2026

· Polarity: Color band denotes cathode end

· Mounting Position: Any

· Weight: 0.041ounce, 1.15 grams
